Fusion FX Bar

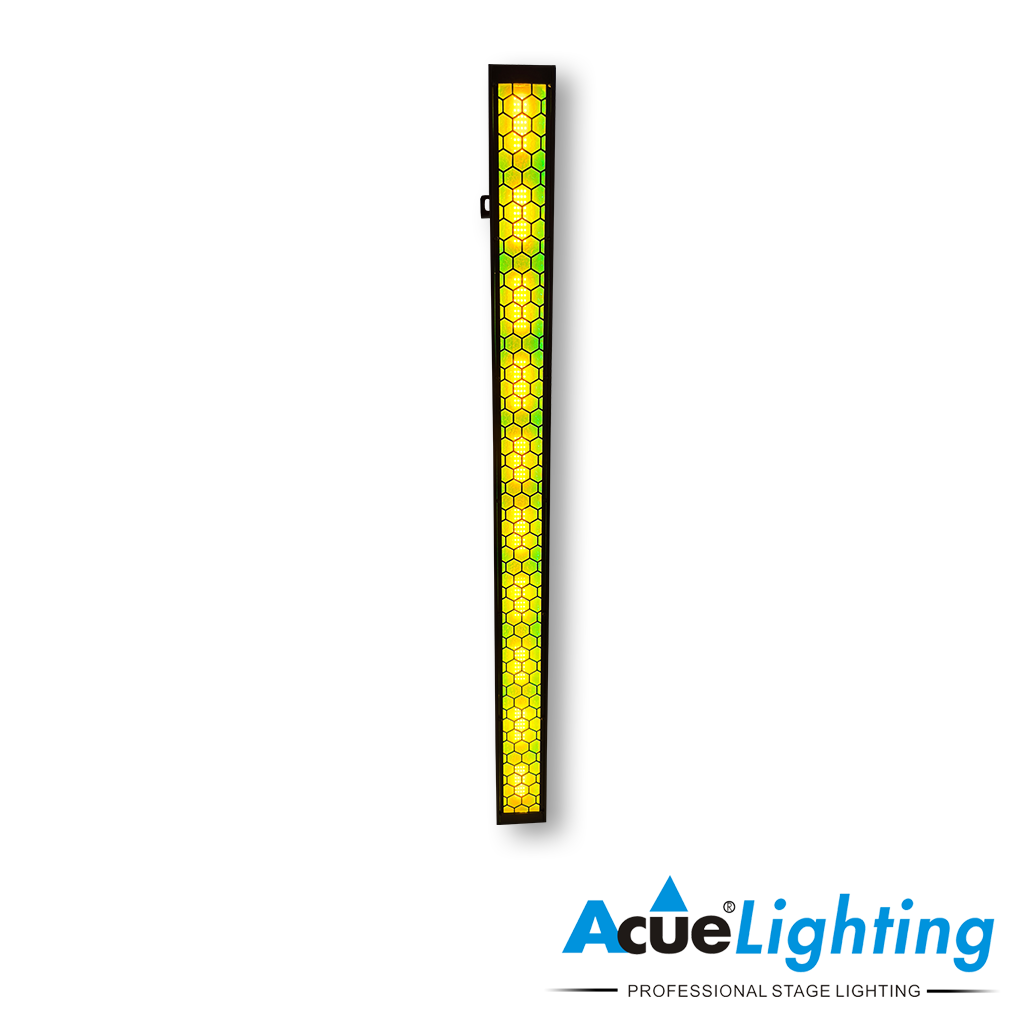

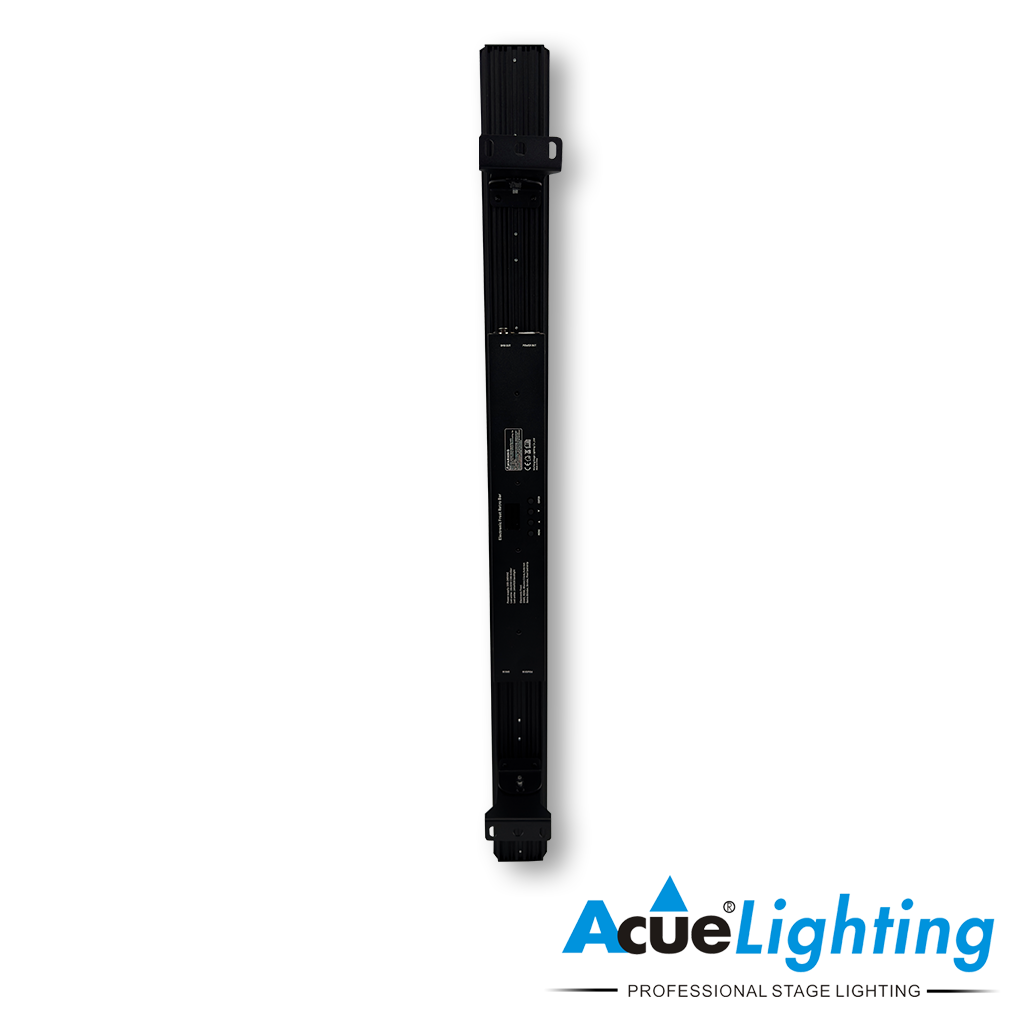

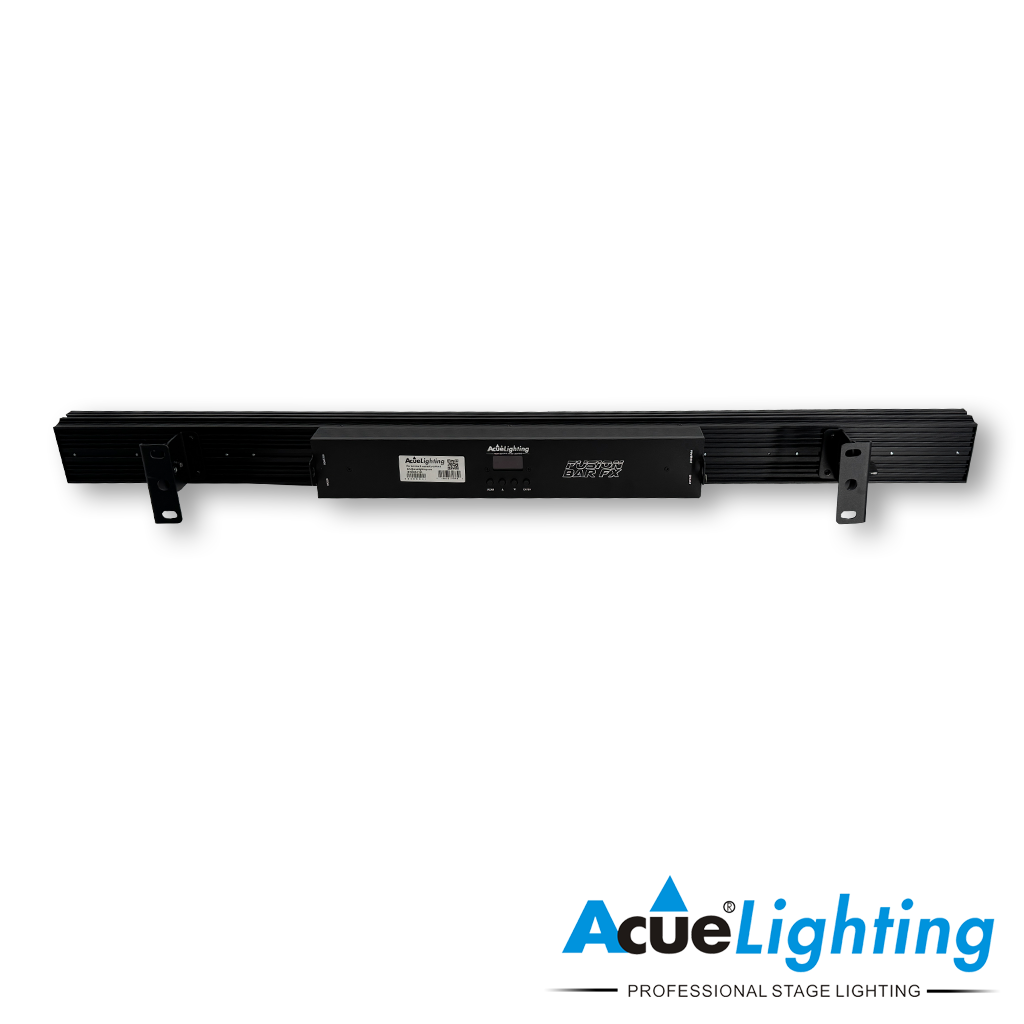

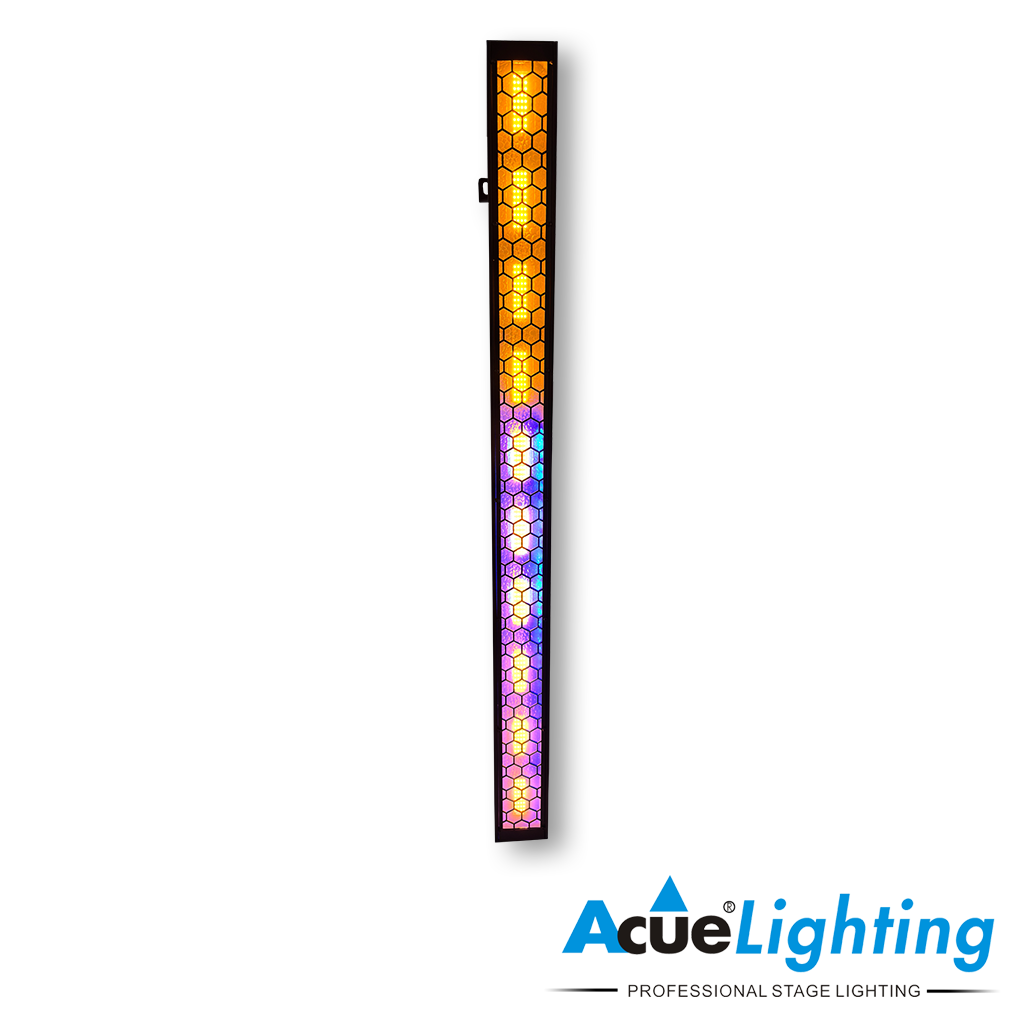

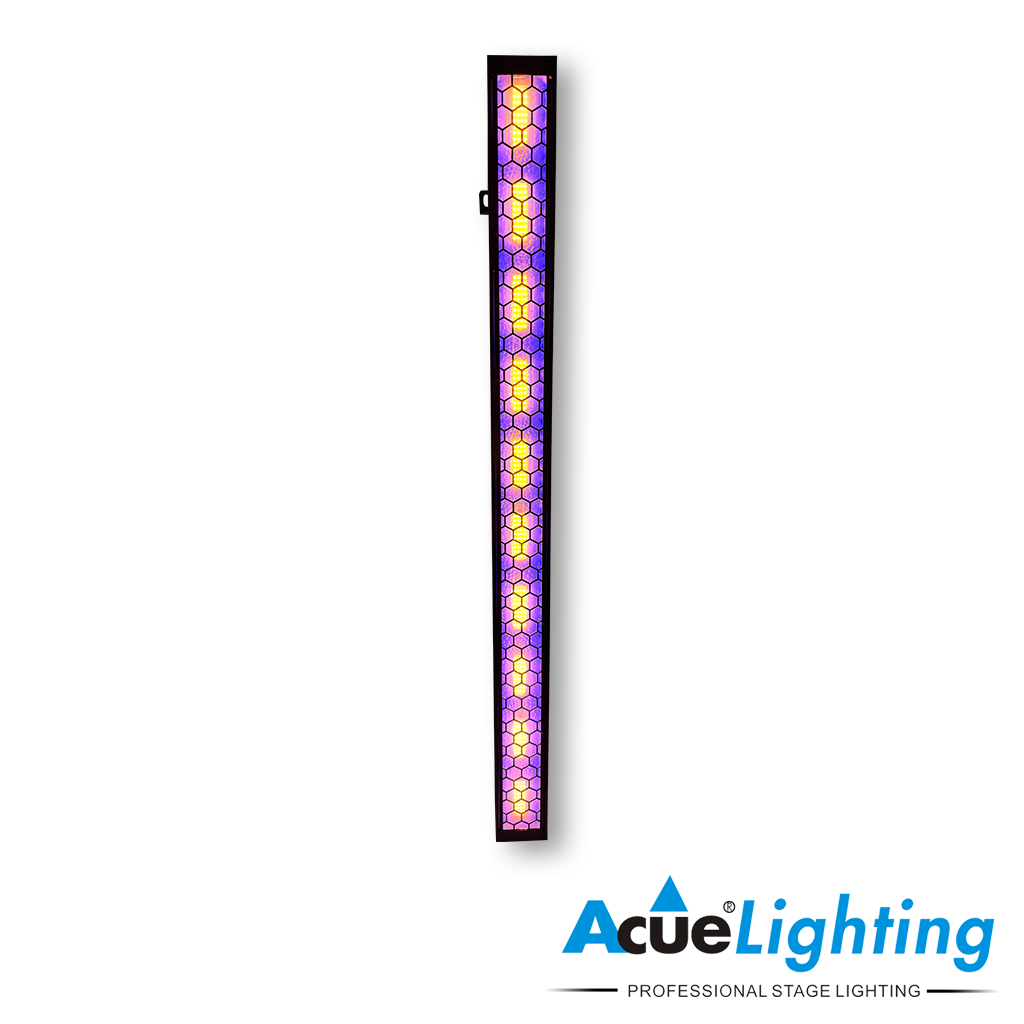

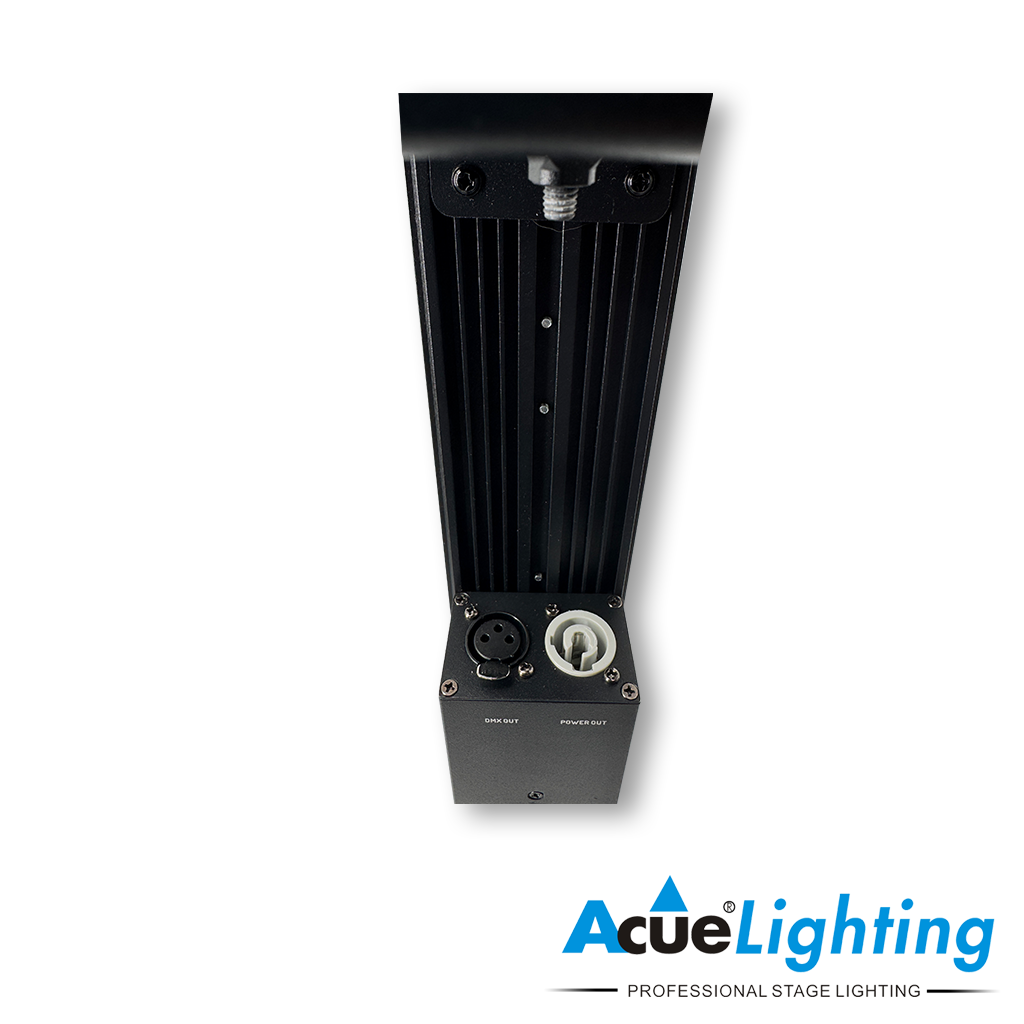

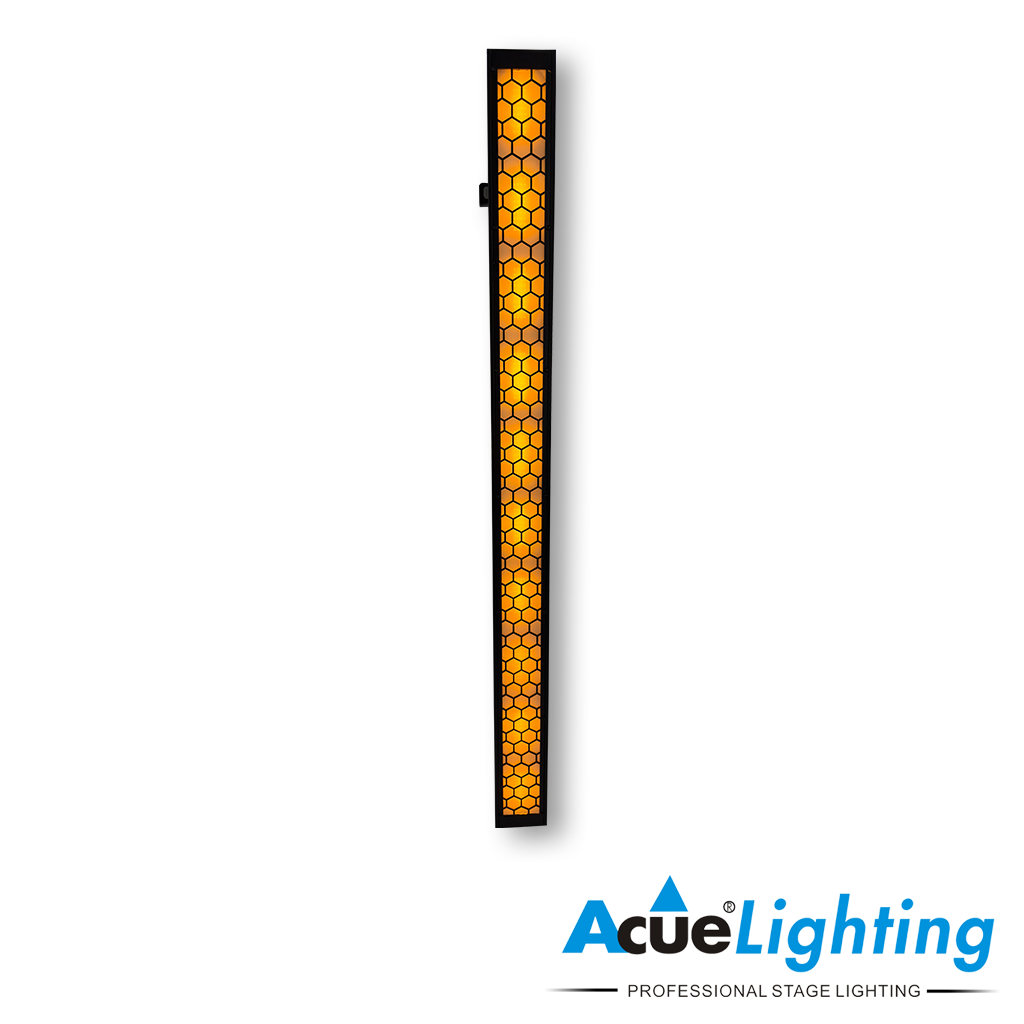

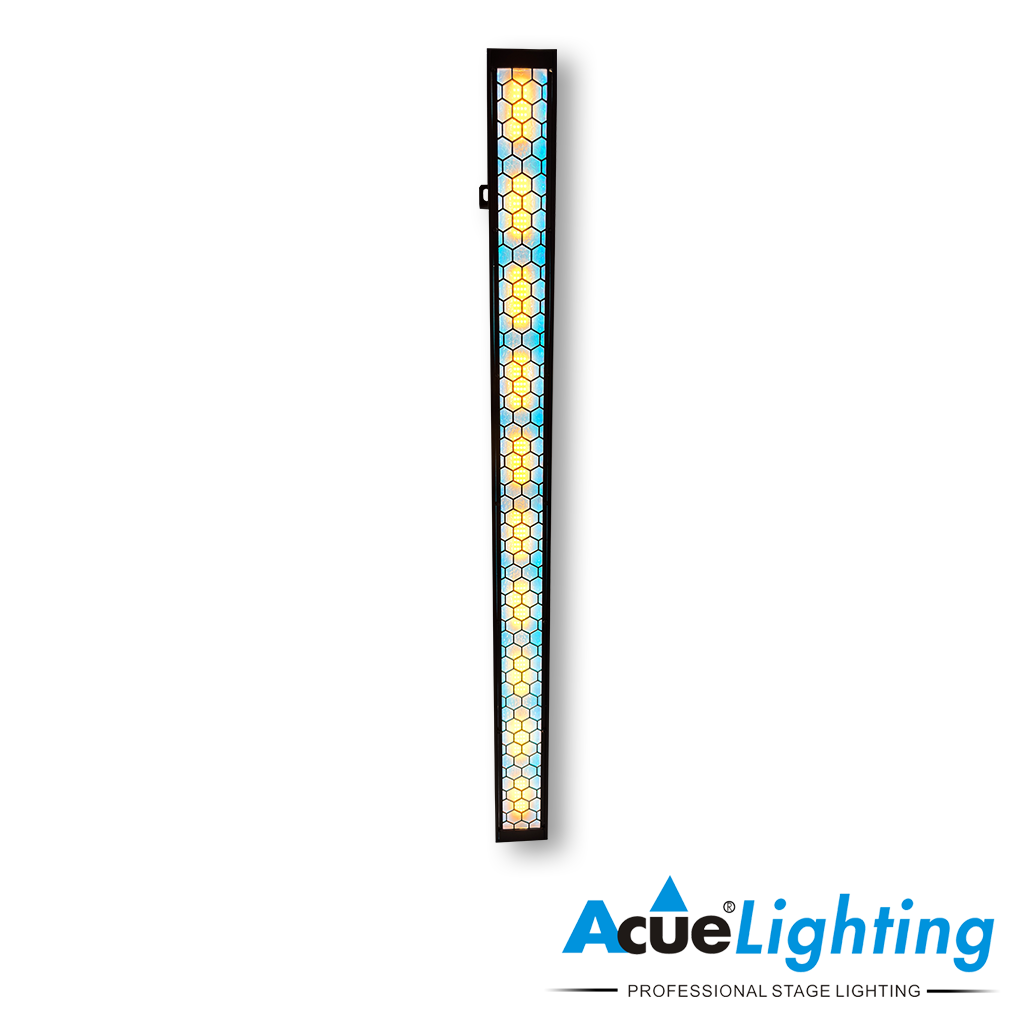

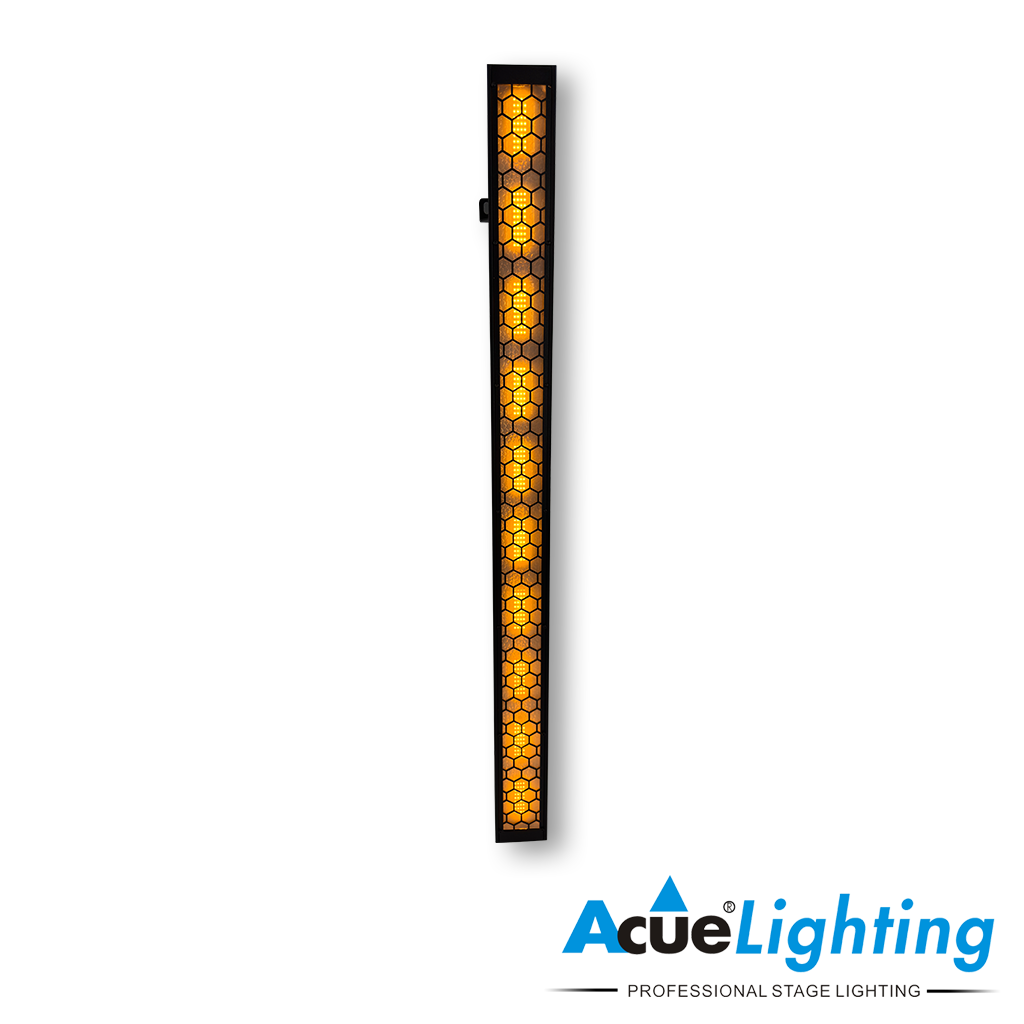

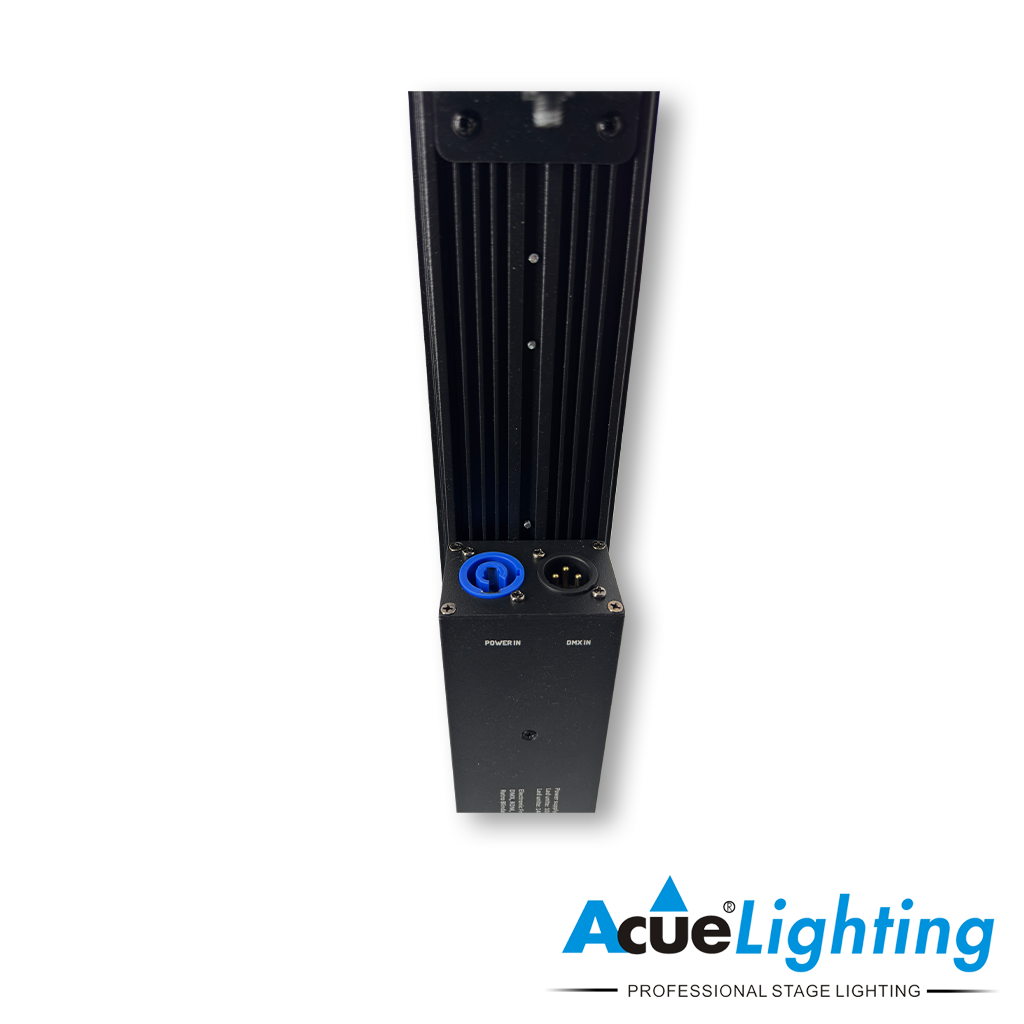

The Acue Fusion FX Bar is a professional multi-effect LED lighting bar designed to combine powerful amber wash lighting with dynamic RGB backlighting and pixel-mapped visual effects. Its linear LED batten design produces rich, warm illumination while the integrated RGB accent strip creates vibrant color transitions and chasing patterns, making it ideal for concert stages, nightclub installations, theatrical productions, and professional event lighting. The fixture's versatile optical design allows lighting operators to transition between concentrated output and wider wash coverage, providing flexible creative control within a compact lighting system. The Fusion FX Bar features 10x30W COB Amber LEDs paired with 144x0.5W RGB backlight LEDs, delivering smooth 0–100% dimming, adjustable high-output strobe effects, and selectable beam angles of 48° without frost or 74° with frost. It supports DMX512, Auto-Program, Sound Active, and Master/Slave operation, with 5, 6, 14, 16, 19, 47, and 52-channel DMX configurations. Operating on 100–240V AC with PowerCON connections and a maximum power draw of 375W, the fixture carries an IP19 indoor rating and has published product dimensions of 41" × 6" × 7", with a listed weight of 10 lbs.
