The Acue Lighting Fusion 7 FX pairs seven 50W Amber COB LEDs with a ring of RGB SMD LEDs across its extra-wide 7-lens housing, combining a bold warm wash with layered, independently controllable color effects. With 20 built-in color combinations, 30 main and auxiliary light effect patterns, adjustable strobe up to 20Hz, and DMX512, auto, sound-active, and master/slave control modes, it offers an exceptional range of looks for any show.
At just 14.7 lbs despite its wide-format housing, the Fusion 7 FX is a strong fit for nightclubs, mobile DJs, live performances, and stage productions looking for a dynamic, multi-effect centerpiece fixture with extra visual width.
SKU: 60032
GTIN: 00810033316845
Categories: Acue Express, Effect Lighting Packages, Effect Lights, Packages, Studio Lighting

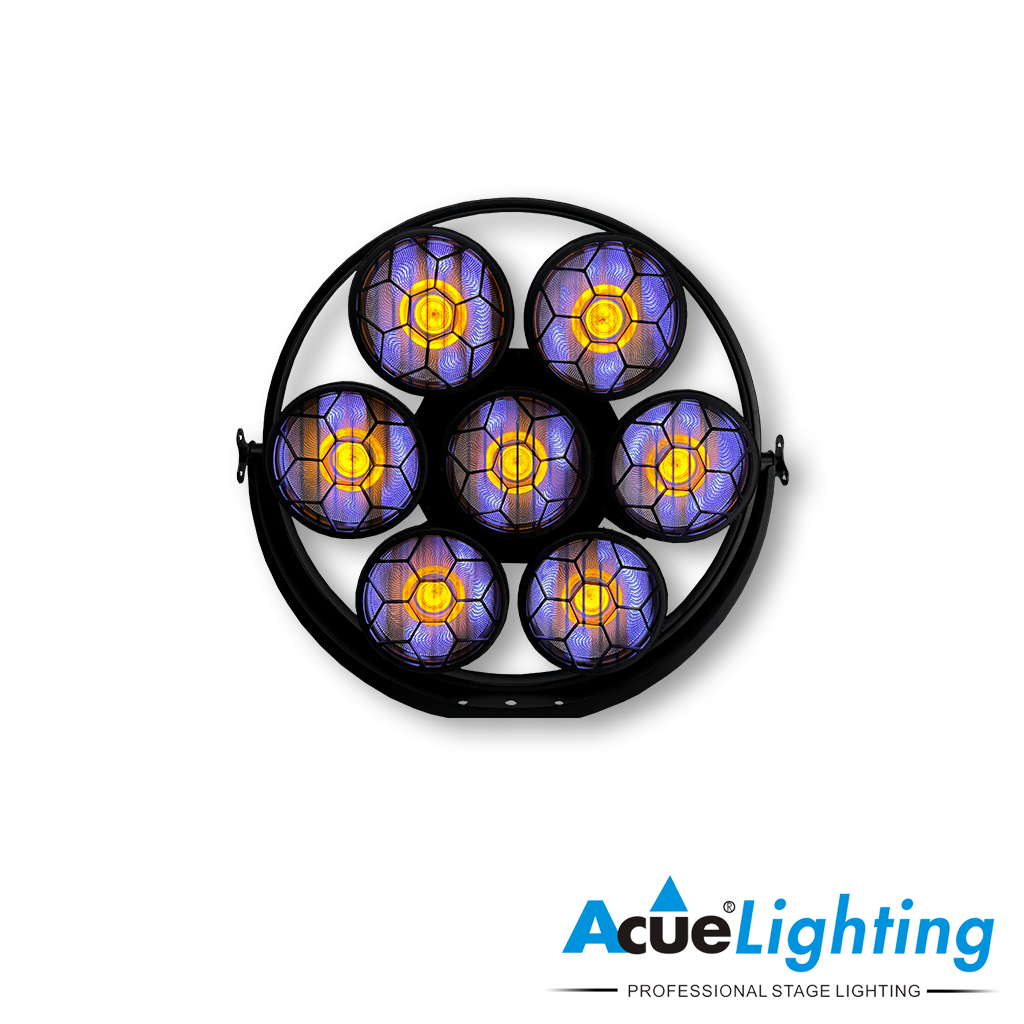

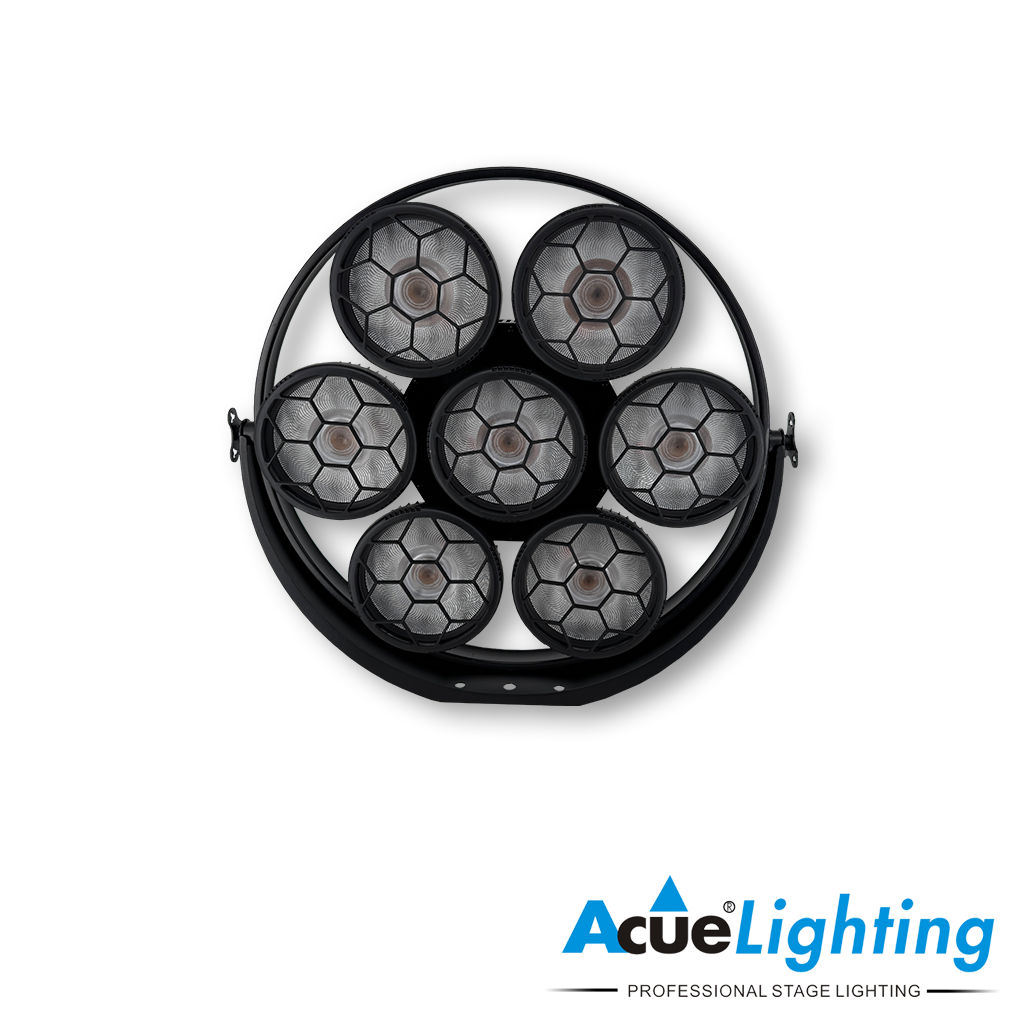

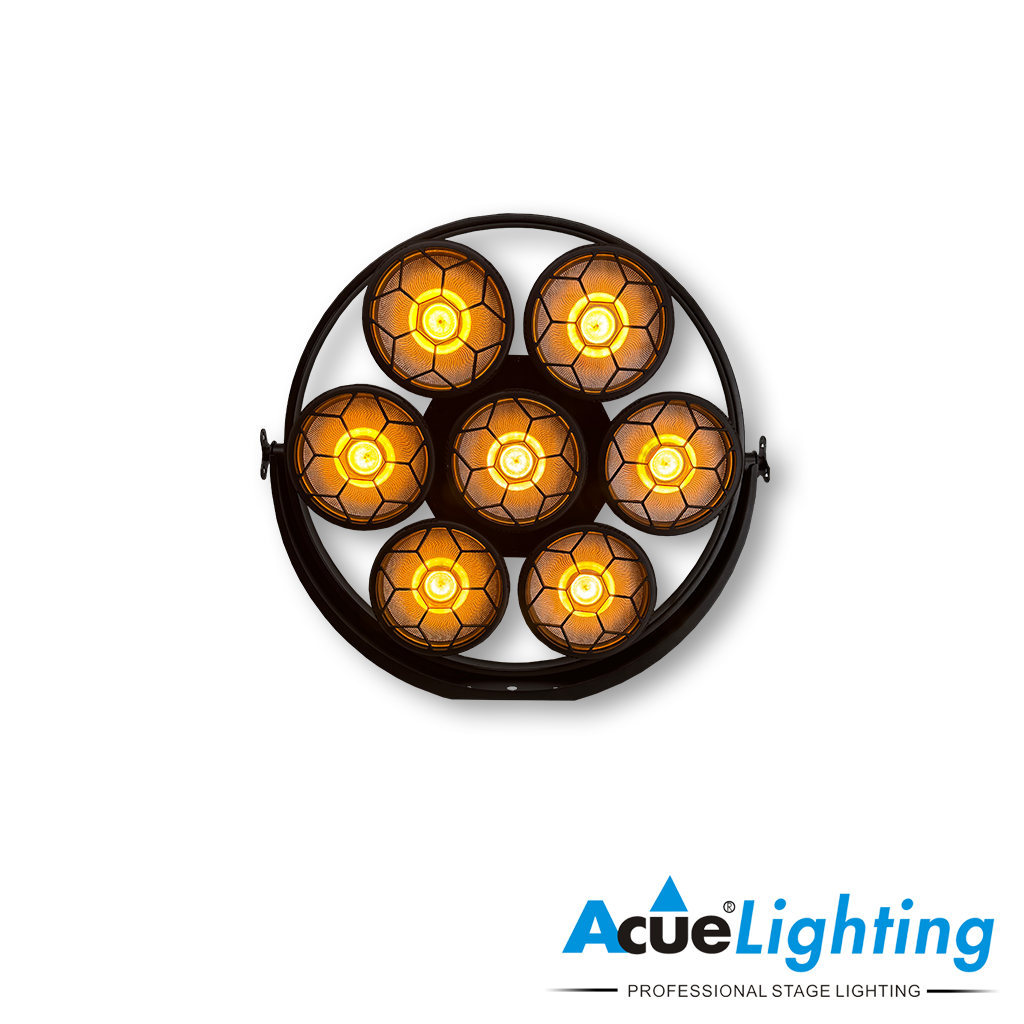

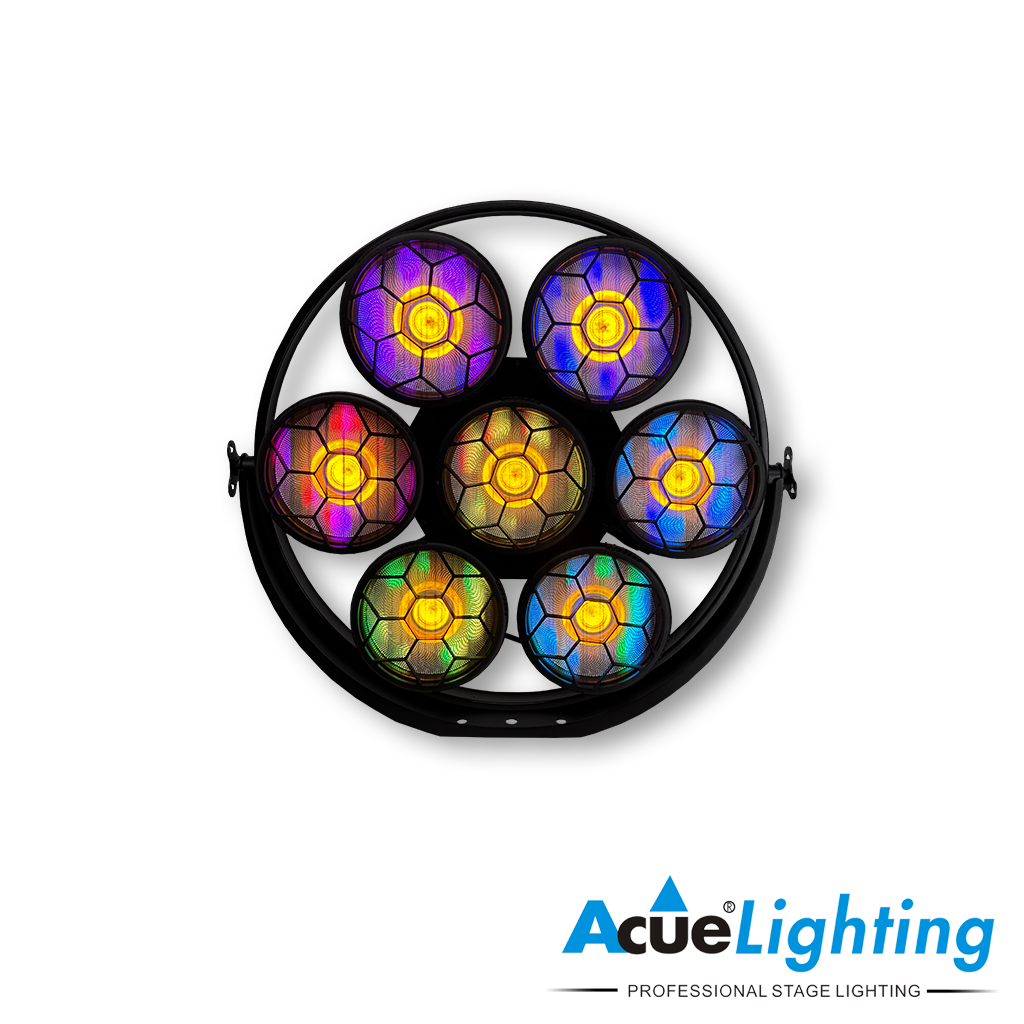

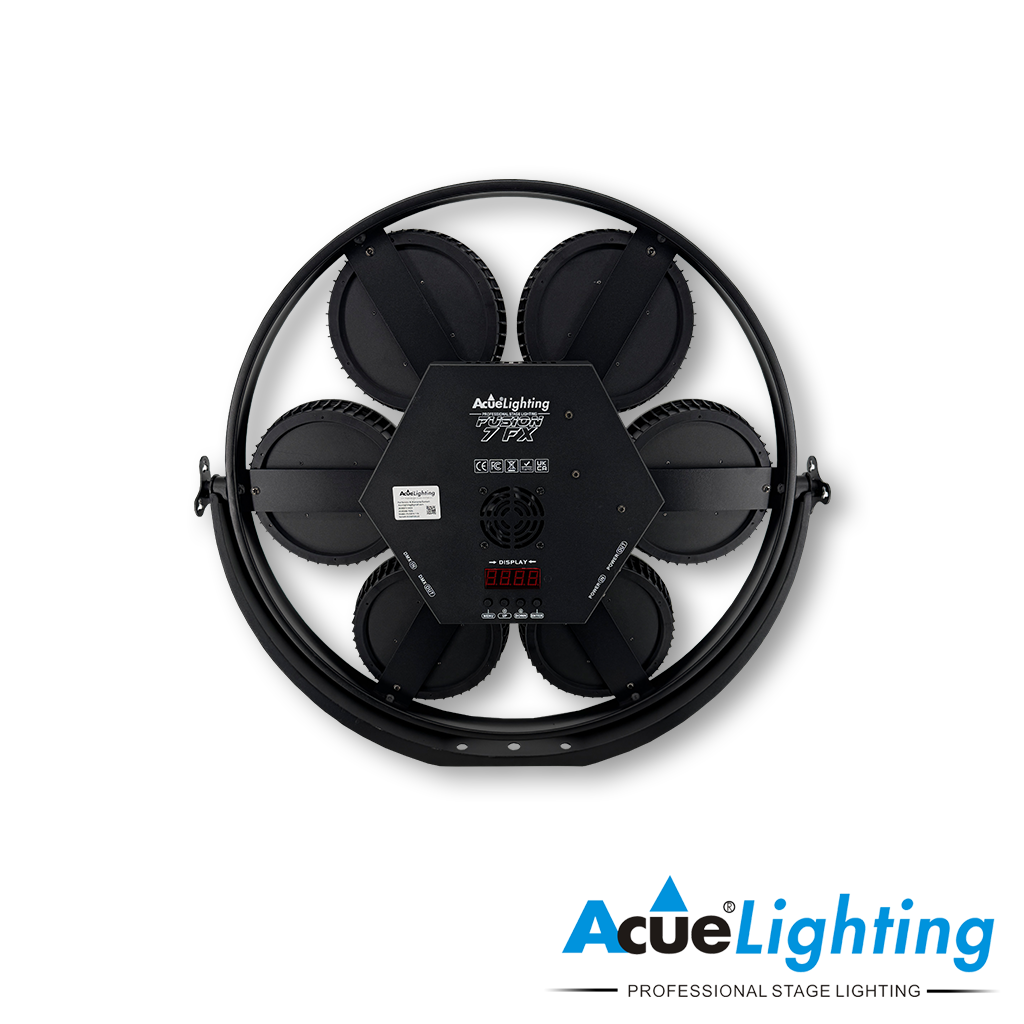

The Acue Lighting Fusion 7 FX is a high-impact 7-lens LED effect fixture built to deliver bold color washes alongside eye-catching pixel-mapped patterns across an extra-wide, bar-style housing. Each of the seven lenses houses a powerful 50W Amber COB LED at its core, surrounded by a ring of 0.2W SMD 5050 RGB LEDs, giving the Fusion 7 FX the ability to layer a warm, punchy main wash with vibrant, independently controllable auxiliary color effects.
With 20 built-in color combinations, adjustable strobe speeds up to 20 times per second, and a library of 30 main light and 30 auxiliary light effect patterns, the Fusion 7 FX offers an enormous range of looks right out of the box. It can be run in DMX512 mode for precise, cue-based programming, set to auto mode for a self-propelled show, synced to music with built-in sound-active control, or linked with additional units in master/slave mode for larger, synchronized displays.

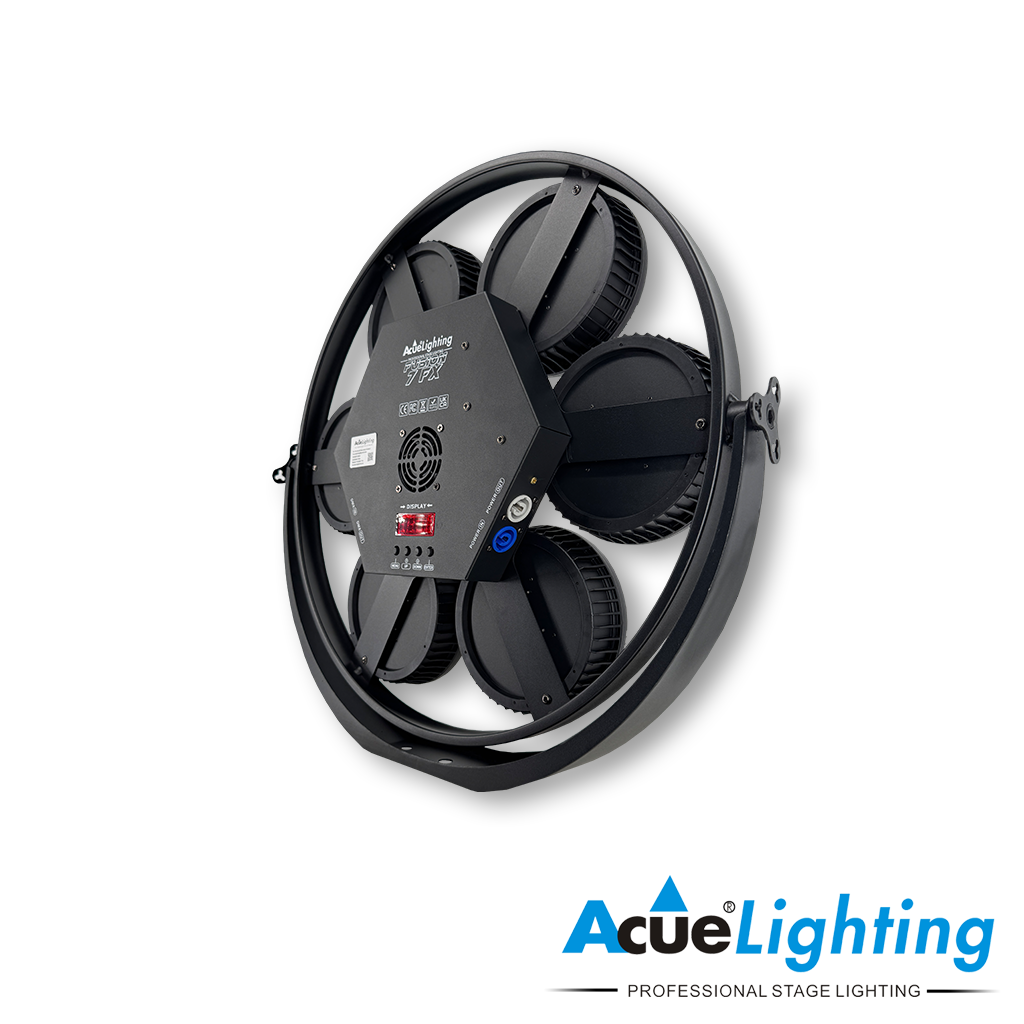

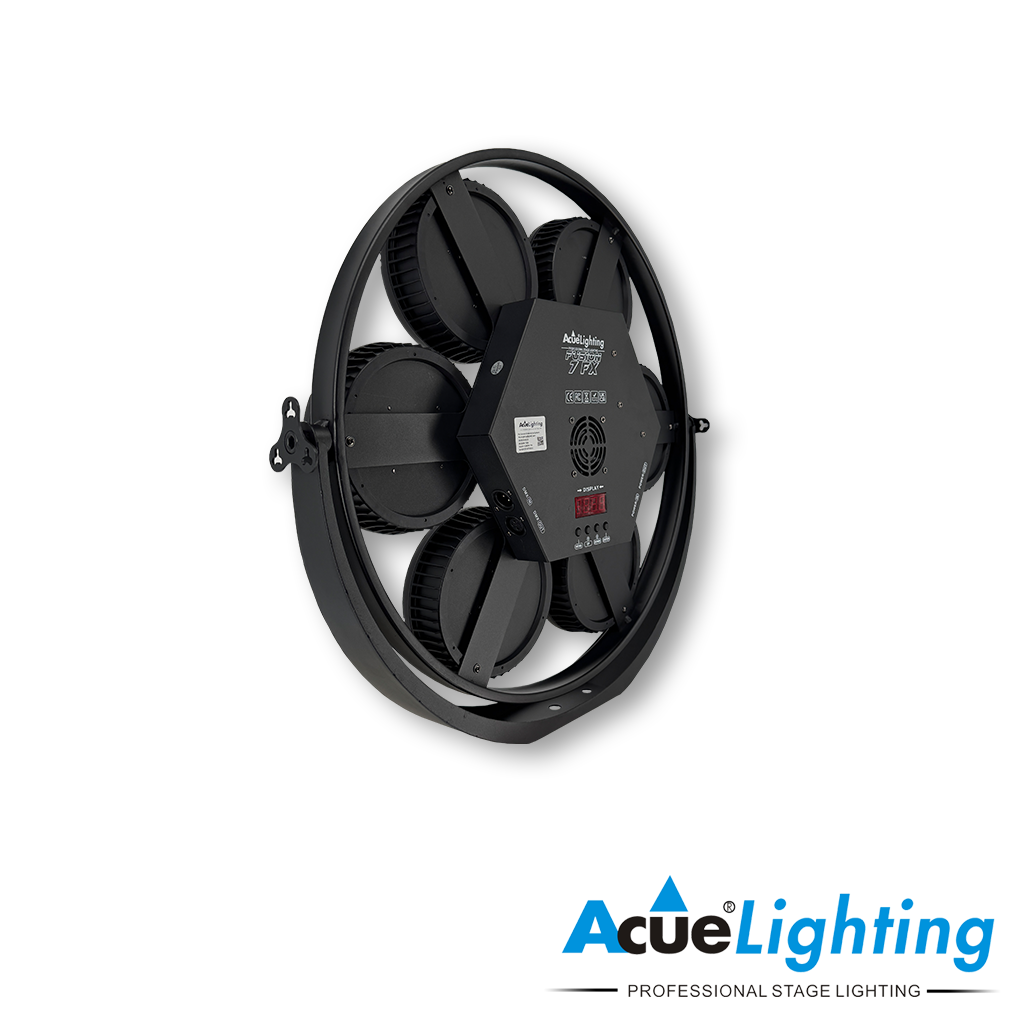

A built-in digital display with 4 control buttons makes manual setup and addressing simple, while 16 and 37 channel DMX modes give lighting designers the flexibility to choose between simplified or fully expanded control. With its extra-wide 7-lens housing, the Fusion 7 FX is an excellent choice for nightclubs, mobile DJ setups, live performances, and any indoor stage or event looking to add a dynamic, multi-effect centerpiece fixture to their rig.
| Light Source | 7x50W Amber COB LEDs + 0.2W SMD 5050 RGB LEDs |
| Operating Modes | DMX512, Auto, Sound Active, Master/Slave |
| DMX Channels | 16/37 Channel modes, 3-pin XLR in/out connections |
| Dimmer | 0-100% dimming control by DMX or built-in control |
| Strobe | 0-20 times/second, adjustable speed by DMX or built-in control |
| Total Power Draw | 400 Watts Max |
| Input Voltage | 100-240V AC 50/60Hz |
| IP Rating | IP20 (indoor use only) |
| Weight | 14.7 lbs |
| Dimensions | 23.3 x 21.3 x 3.5 in |

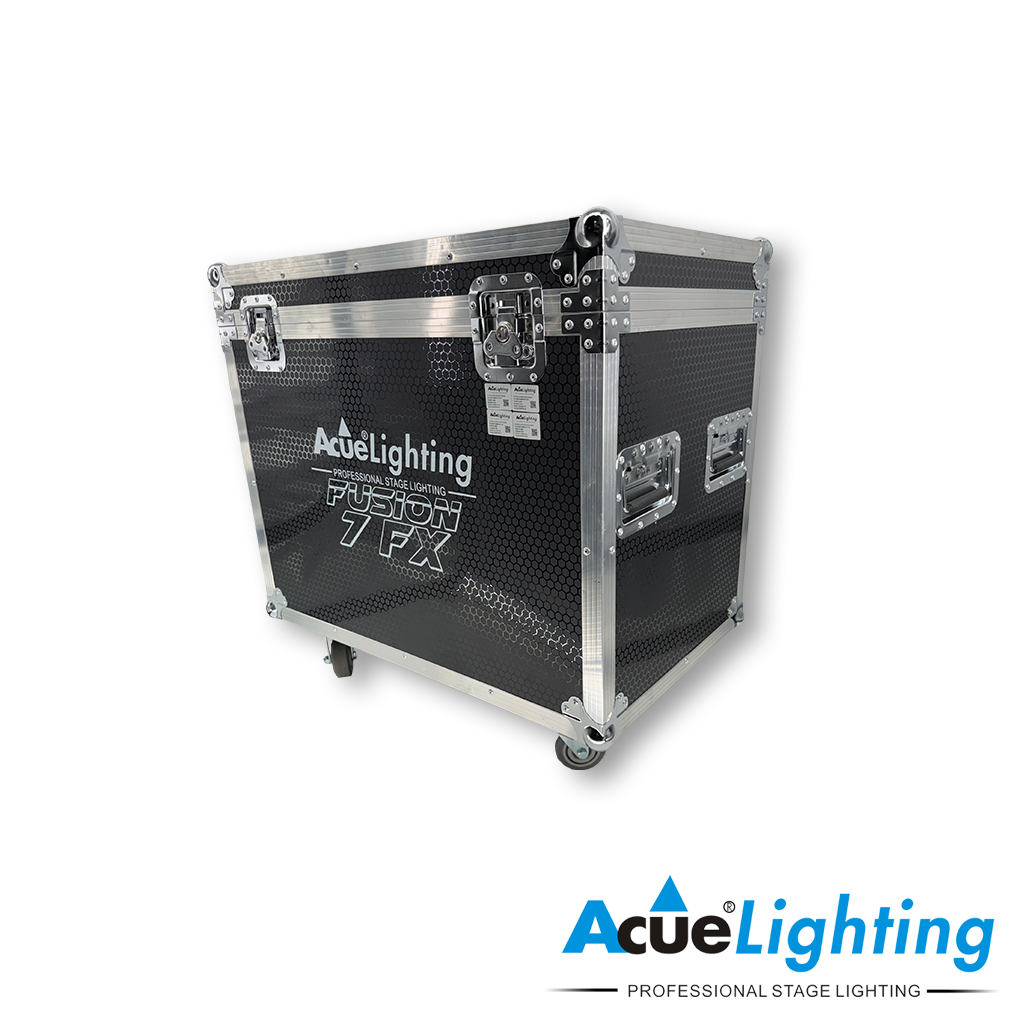

| Weight | 107 lbs |
| Dimensions | 29 x 18 x 28 in |
