Description

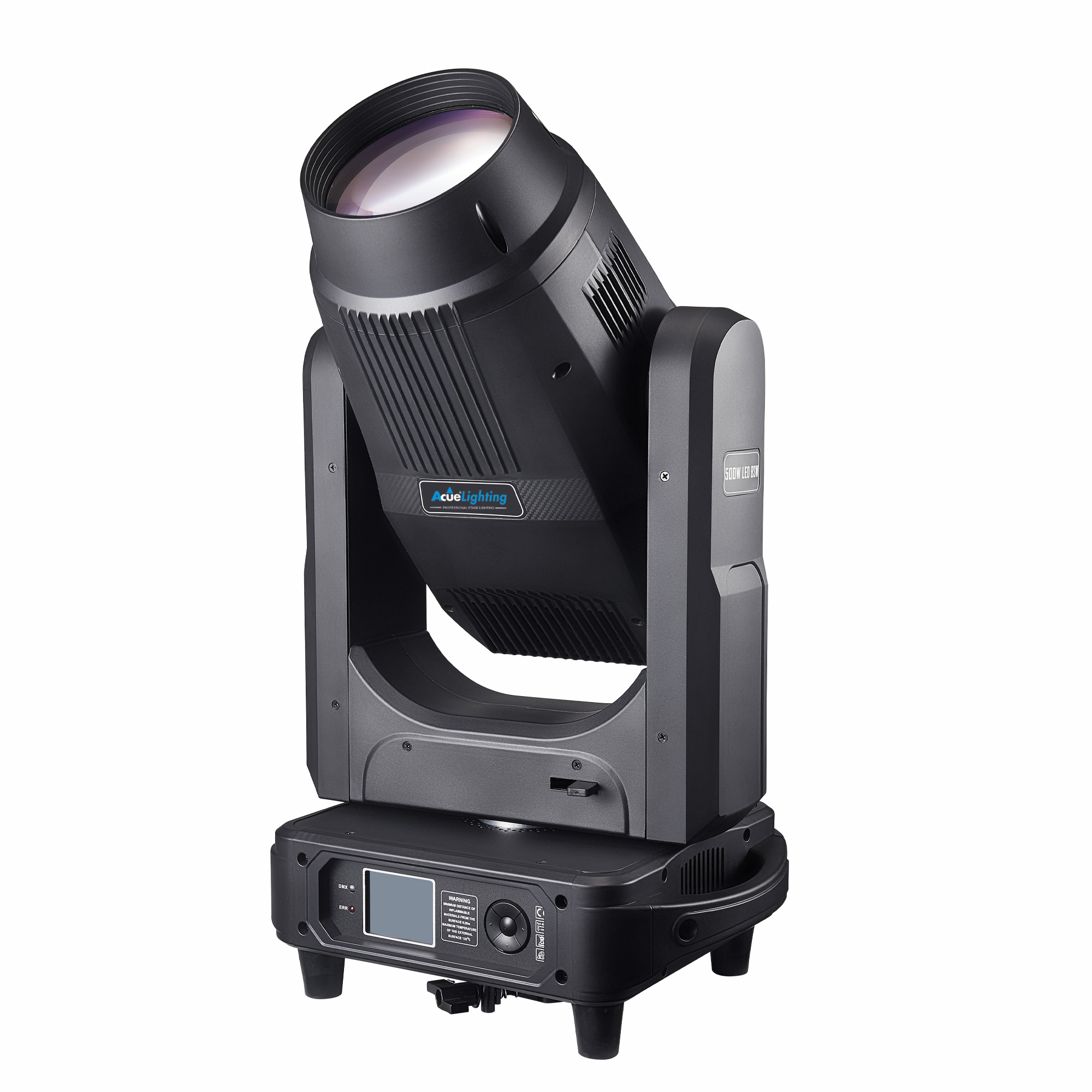

The Acue Pro Extreme 600 CMY Hybrid is one of our High Power and full function professional moving head fixtures. It is one of the largest fixtures in the Extreme family of fixtures and is packed with features not available in many other fixtures.
It is a full feature hybrid fixture comprised of a beam, spot and a wash moving head all in one. The fixture utilizes a 600W white LED (rated at 20,000 hrs) as its light source. The Extreme 600 also features a seamless CMY filter system as well as a CTO control system making it the perfect fixture for large scale venues and theaters alike. The Extreme 600 CMY Hybrid also features an effect wheel to add animation to any desired effect.
Thanks to the innovative combination of the most important functions available in todays moving heads, the Extreme 600 has the capability to be all 3 fixtures at once, a Beam, Spot and a Wash along with almost all the features available in todays market.
The Acue Extreme 600 CMY Hybrid is sold as a package of 2 lights including a 2 in 1 flight case .
| Light Source |
600W LED |
| Light Source Life Cycle |
20,000 hrs |
| Pan |
540˚ 16bit |
| Tilt |
270˚ 16bit |
| Color Wheel |
8 Colors + 0pen + color wheel rotation |
| CMY Control |
3 Flag CMY color flag system with CTO |
| Gobo Wheels |
2 Gobo Wheels: 10 Fixed gobos + open / 7 Interchangeable, rotating, indexable gobos + open |
| Special Effect |
Built in animation wheel |
| Prism |
2 prism wheels, 1 x 8-facet prism & 1 x 6-facet prism with independent rotation control |
| Zoom |
Linear motorized zoom (3.5˚-50˚) |
| Focus/Fine Focus |
Precise mechanical focus control |
| Frost |
Linear frost control |
| Shutter |
Variable (1-30 fps), random strobe |
| DMX Channels |
26ch, 34ch & 39ch modes |
| DMX In/Out |
3 pin & 5 pin DMX in/out |
| Total Power Draw |
700W |
| Power Input |
AC 110-240V,50/60Hz Powercon input |
| Net Weight |
50.5 lbs |
| Fixture Size |
15" x 10.5" x 26.5" |
| Rigging |
Built-in folding HD trigger clamps (2) |
Documentation
Manuals, spec sheets, and DMX channel charts.
About
The Acue Extreme 600 CMY Hybrid Package is a professional high-power 600W LED beam, spot, and wash moving-head system created for concerts, theaters, touring productions, venues, rental companies, and permanent entertainment installations. Its 600W white LED engine carries a rated 20,000-hour life, while a broad 3.5°–50° motorized zoom gives designers the flexibility to create narrow aerial beams, sharply focused projections, and wide stage washes from the same fixture. Smooth 540° 16-bit pan and 270° 16-bit tilt provide precise movement, making the Extreme 600 a versatile centerpiece for large-scale professional lighting designs.
Creative tools include a 3-flag CMY system with CTO, an 8-color wheel plus open and rotation, 10 fixed gobos plus open, 7 interchangeable rotating/indexable gobos plus open, a built-in animation wheel, dual independent prism wheels with an 8-facet prism and 6-facet prism, precise mechanical focus, linear frost, and variable 1–30 fps strobe with random-strobe capability. DMX operation is available through 26-, 34-, and 39-channel modes with both 3-pin and 5-pin connections. The fixture operates from AC 110–240V, 50/60Hz PowerCON, consumes approximately 700W, weighs 50.5 lbs, measures 15 x 10.5 x 26.5 inches, and includes two built-in folding HD trigger clamps. The package contains two fixtures and a 2-in-1 flight case and is listed at approximately 172 lbs.
