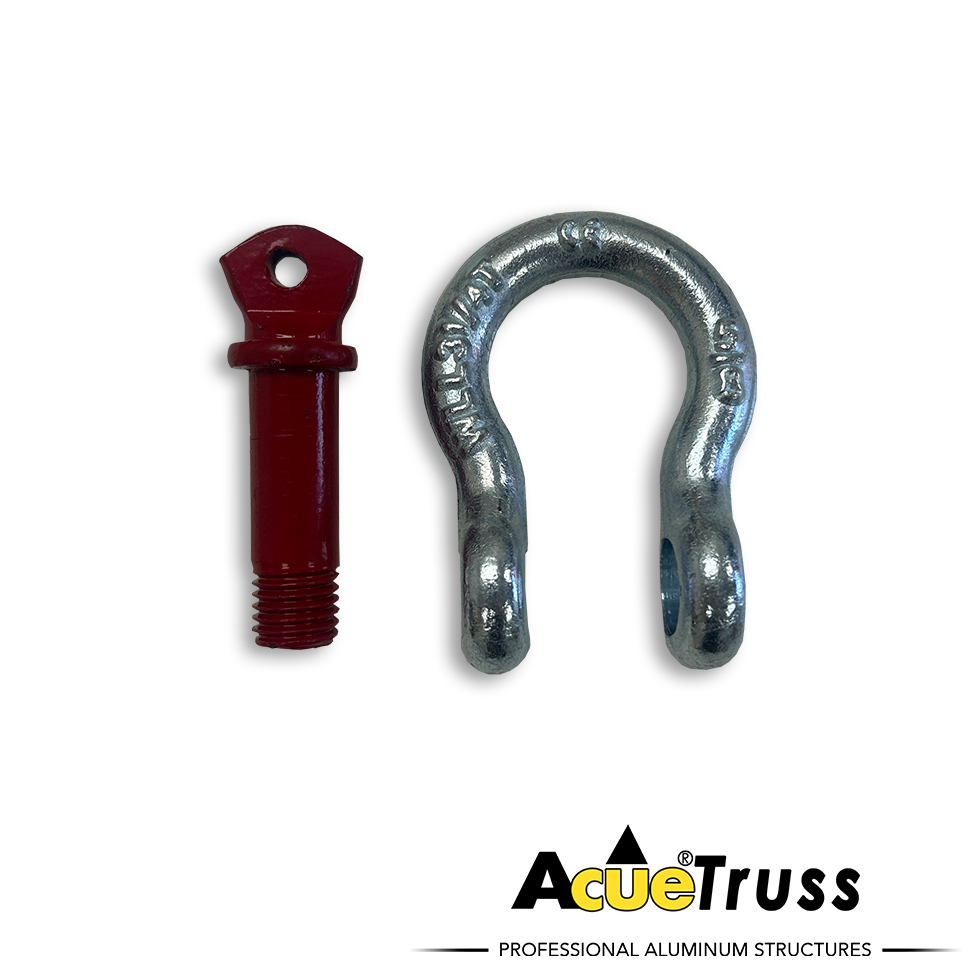

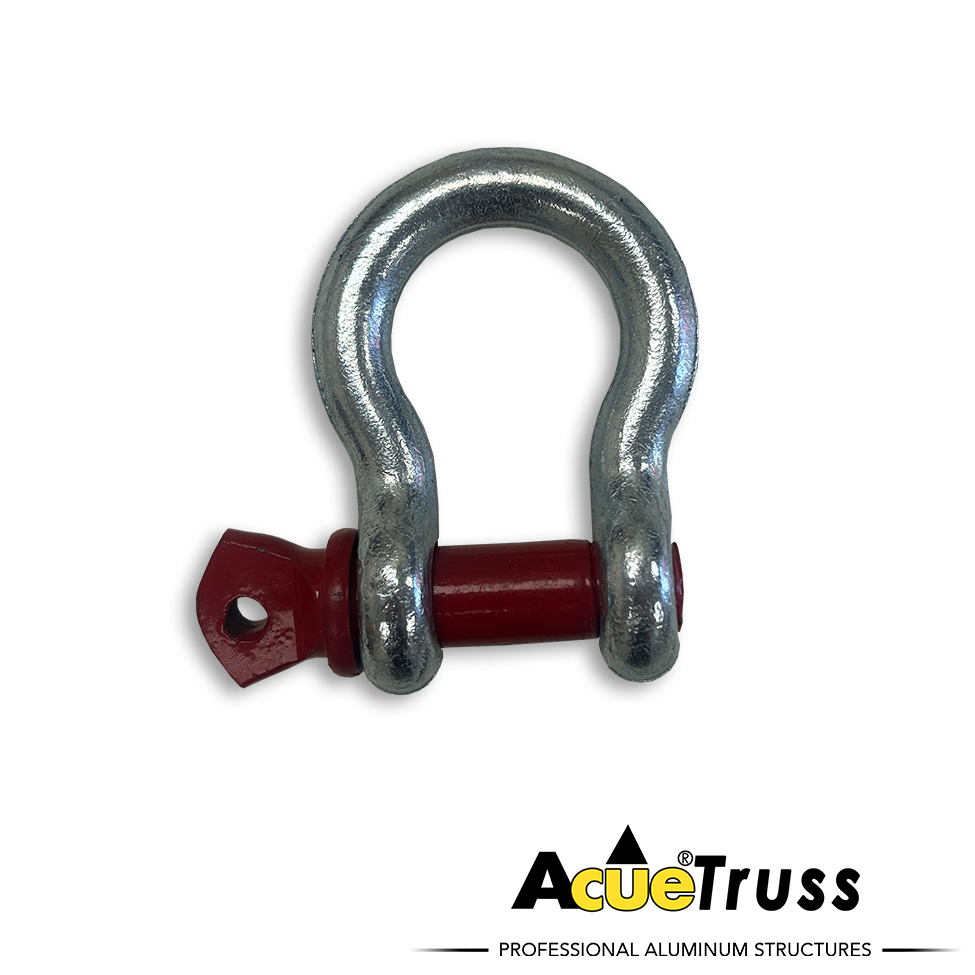

The 5/8" 3.25T Rigging Shackle from Acue Lighting combines the ease of a quick-release screw pin with the security of a strong, dependable connection. Its wide anchor-style bow accommodates multi-leg sling setups and a broader range of connection angles compared to standard D-shackles, making it a versatile choice for lifting and rigging applications.
Forged, quenched, and tempered from Grade 6 steel with a high-strength alloy pin, this shackle is hot-dip galvanized for corrosion resistance and rated for use between -40°F and 400°F. It's fatigue rated to 20,000 cycles at 1.5x its 3.25-ton Working Load Limit and meets or exceeds ASME B30.26 requirements — a reliable connector for touring rigs, stage production, and general rigging needs.
Temporarily unavailable to order online — contact us to order.
| Pin Size | 5/8" |
| Working Load Limit (WLL) | 3.25 Tons |
| Grade | Grade 6 |
| Construction | Forged, quenched and tempered steel with high-strength alloy screw pin |
| Finish | Hot-dip galvanized for corrosion resistance |
| Pin Style | Quick-release screw pin for fast, temporary connections |
| Shape | Anchor (bow) style, ideal for multi-leg sling connections |
| Temperature Rating | -40°F to 400°F (-40°C to 204°C) |
| Fatigue Rating | Rated to 20,000 cycles at 1.5x the Working Load Limit |
| Standards | Meets or exceeds ASME B30.26 requirements |
| Product Weight | 1.4 lbs |
